Introduction

Nflux is a network agent tool that monitors incoming traffic on a Linux system by attaching a XDP (Express Data Path) program using eBPF technology.

The nflux program attaches directly to the physical network interface, enabling packet processing at a very low level, right at the network driver. It supports both IPv4 and IPv6 packet processing, as well as core protocols such as TCP, UDP, and ICMP.

XDP can be used to redirect packets or drop them at the network interface. However, this software is not designed to act as a firewall or to redirect packets at this time. Its sole purpose is to monitor incoming traffic, allowing all packets to pass through without interference. Multiple attachment to different interfaces is not yet supported.

Egress traffic monitoring was available in earlier versions of nflux (prior to 1.0.0). For versions 1.0.0 and above, it is currently not included, as the main focus of this software is tracking incoming connections.

Visualizations

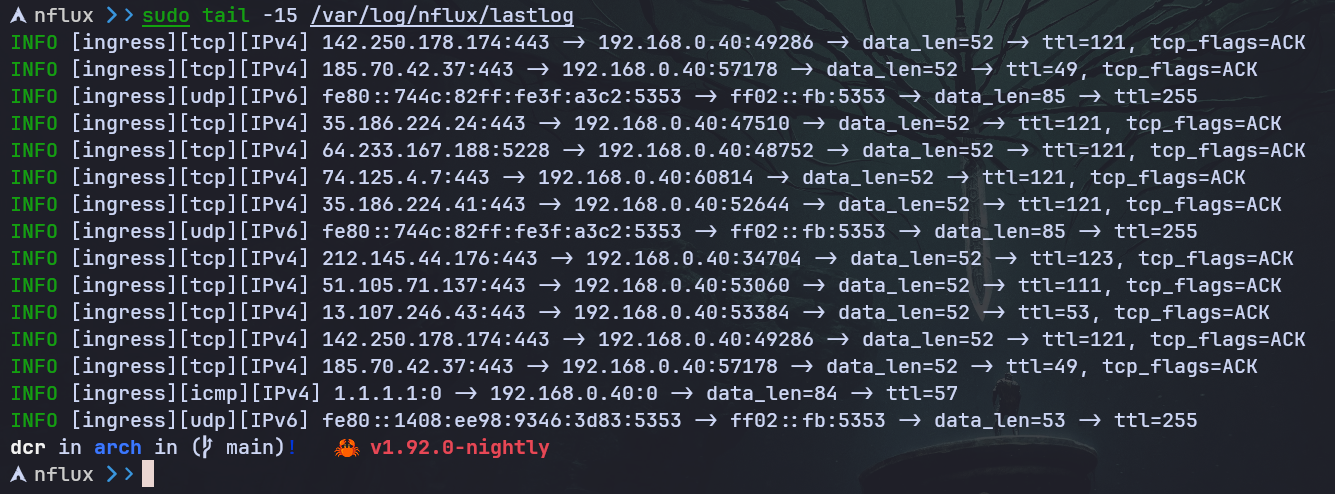

Monitor incoming traffic using XDP and eBPF with nflux, a high-performance network monitoring agent.

example image

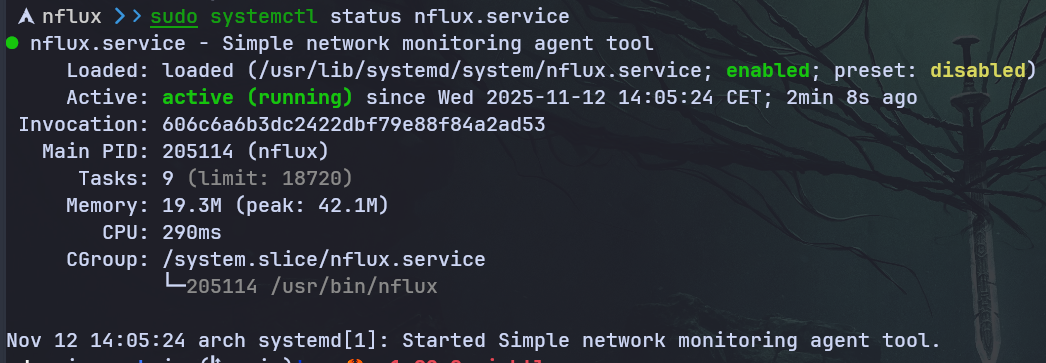

Nflux managed by systemd service (in future versions will be contiainerized)

example systemd

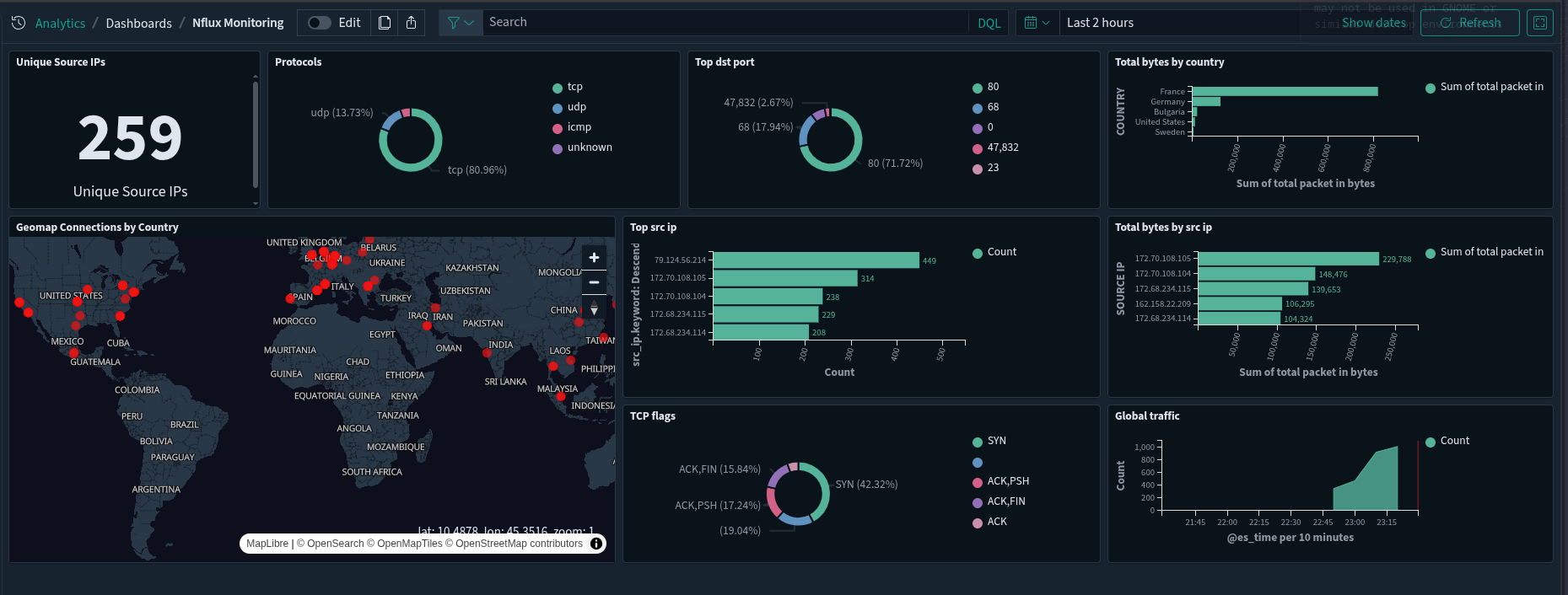

Build your own network monitoring dashboard with Opensearch

example opensearch dashboard
